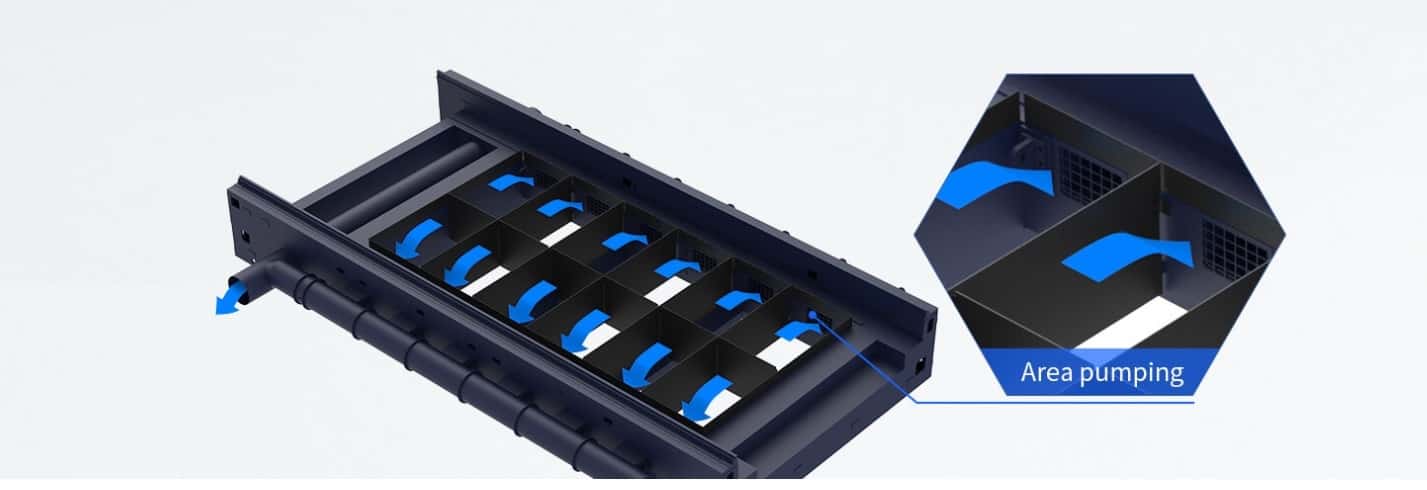

High-quality Carbon Steel Welding Machine Bed


Machine bed is welded by high-quality carbon structural steel against 500Mpa tensile force; Relieve welding stress by high annealing and natural aging, anti-deformation and more durable.

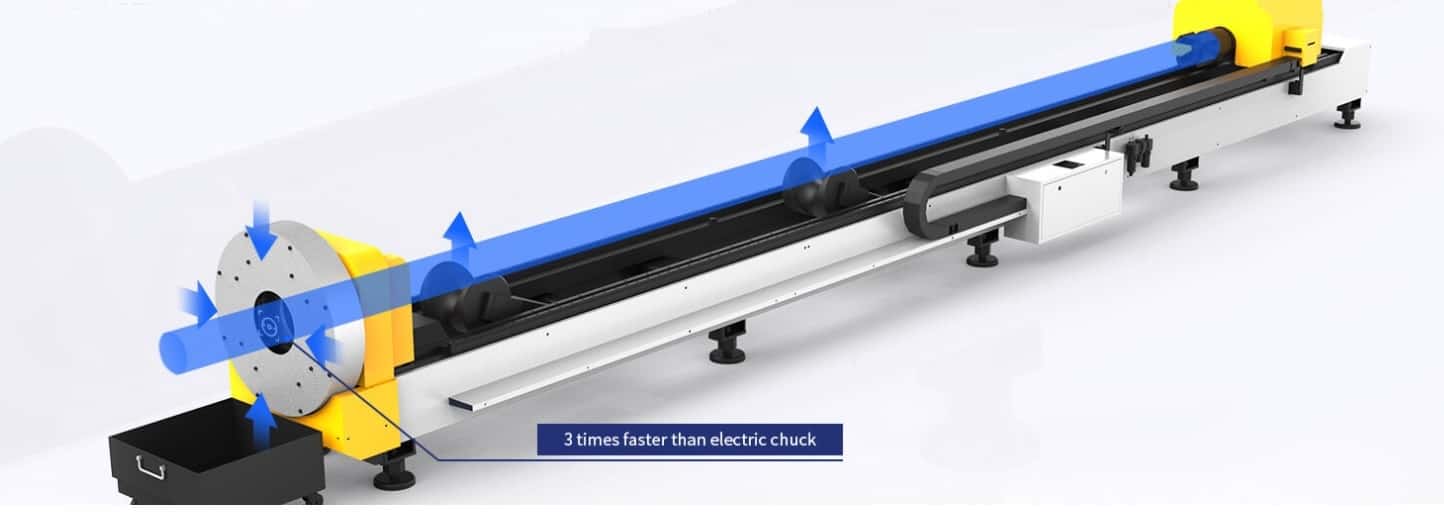

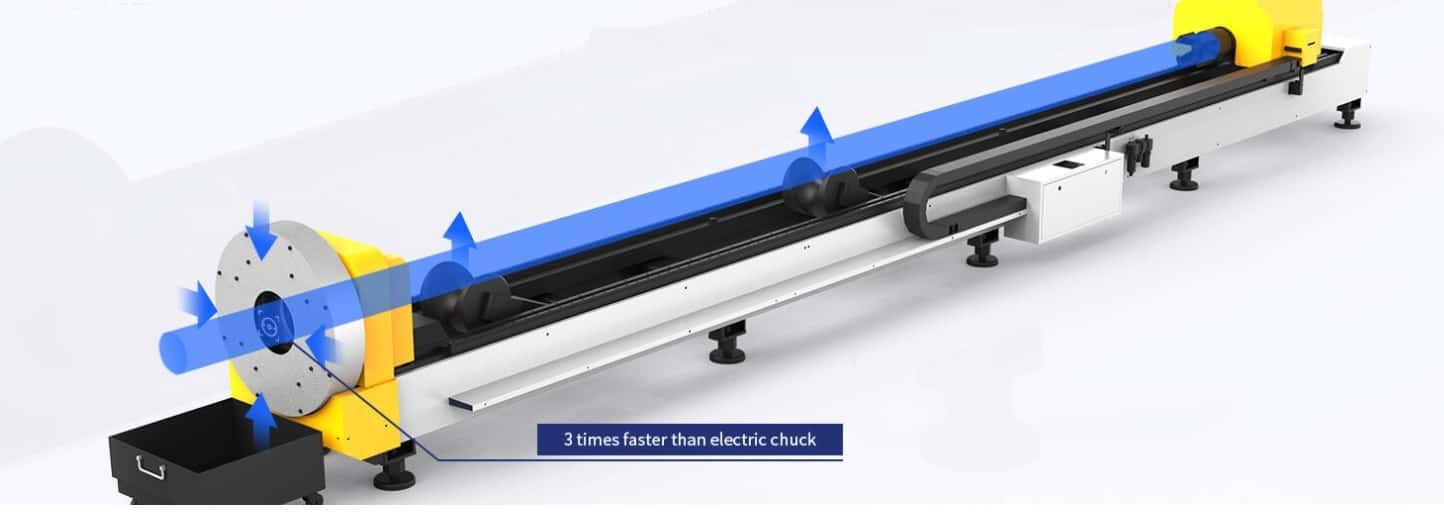

Full-automatic Double Pneumatic Chuck


One-button clamping, auto centering, 3 times faster than electric chuck, saving waiting time for loading and unloading; Pneumatic claws with large and constant clamping force, heavy tube is clamped tightly without slip, cutting accuracy guaranteed; Special support frame prevents tube from sagging and deforming, improving cutting accuracy and prolonging service life of chuck.

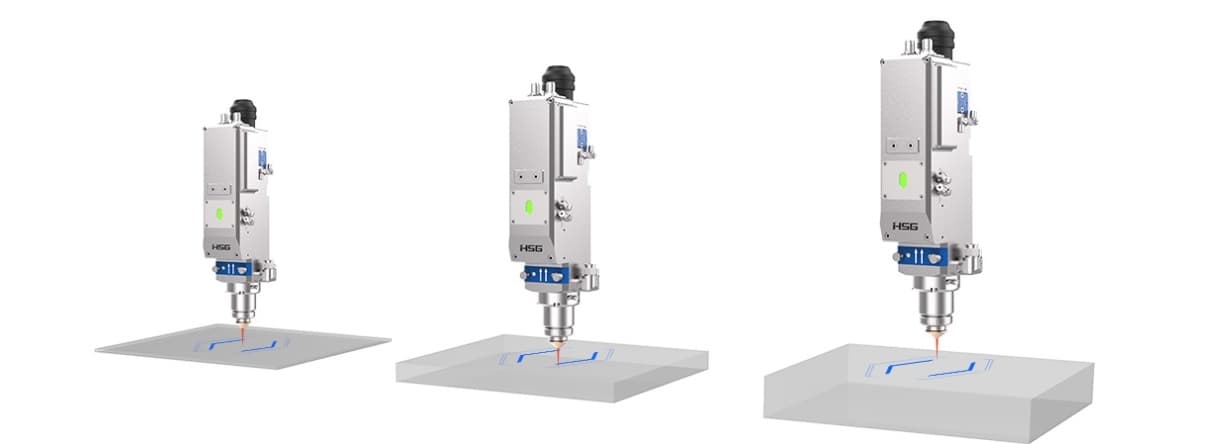

Autofocus Cutting Head


Autofocus cutting head adopted can adjust focal point automatically according to material thickness and apply to multiple focal lengths; Shorten punching duration, improve punching quality and save time by high-speed cutting.

Imported parts, Precise Control, High Speed and Stability


                                                       Intelligent Dual-drive

                             Gantry-type dual servo motor drive system makes

                                    sure of high speed & high accuracy of cutting and

                                               high stability while machine working;






         Gas Servo Proportional Valve

            Imported gas servo proportional valve,
            digital input, auto adjustment,
            make gas flow and pressure control more accurate, increase efficiency and save using costs;

Technical Parameter



G6020B-22EQ G4020B-22EQ G3015B-22EQ Feature/Model
6000mm*2000mm 4000mm*2000mm 3000mm*1500mm Working Area (L*W)
2025mm/6025mm/270mm 2025mm/4025mm/270mm 1525mm/3025mm/270mm Stroke (X/ Y/ Z Axis)
±0.03mm/m ±0.03mm/m ±0.03mm/m X/Y Axis Positioning Accuracy
60m/min 60m/min 60m/min Max. Moving Speed
0.5G 0.5G 0.5G Max. Acc. Speed
Φ20 – Φ210mm Φ20 – Φ210mm Φ20 – Φ210mm .Round Tube Processing Dim
20*20mm – 150*150mm 20*20mm – 150*150mm

20*20mm – 150*150mm

.Square Tube Processing Dim
Diagonal≤210 Diagonal≤210 Diagonal≤210 .Rectangle Tube Processing Dim
IP54 IP54 IP54 Power Protection Grade
1000W~4000W 1000W~4000W 1000W~4000W Laser Power
1900kg 1400kg 800kg Max. Loading of Sheet
100kg 100kg 100kg Max. Loading of Tube
7500kg 6600kg 5000kg Machine Weight

8400×3880×1650mm

8400×3880×1650mm

8400×3150×1650mm

Overall Dimensions (L*W*H)
